The drilling machine that carries out all drilling operations, grooving and vertical routings.
Very high productivity guaranteed, no operator’s intervention for the worktable tooling.

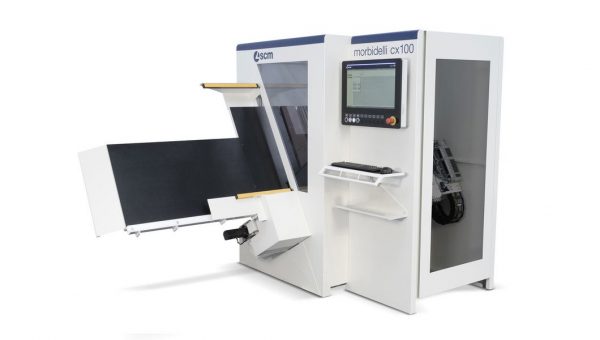

Morbidelli Cx100
The drilling machine that carries out all drilling operations, grooving and vertical routings.
Very high productivity guaranteed, no operator’s intervention for the worktable tooling.
In Stock
Advantages
PERFECT FINISH:
DRILLING FROM THE TOP
The system of drilling from the top uses the outside of the panel as a reference concealing defects; the result is to always move any difference in thickness to the inside of the cabinet.
PERFECT JOINTS: AUTOMATIC READING OF THE WORKPIECE LENGTHAny discrepancy between the actual length of the panel and the one set is corrected by a precision reading laser allowing for perfect alignment.
EASY AND INTUITIVE:MAESTRO SOFTWARE
CAD/CAM software designed and developed entirely by SCM in Windows environment that allows to program easily any element to be realized.
It provides the customer with all the tools necessary for the design, the management of the tools and related processes.
Technical data
| Workpiece max. dimensions | mm | 3050x900x60 | ||
| Workpiece min. dimensions | mm | 200x70x10 | ||
| X-Y axes speed | m/min | 40 | ||
| Independent vertical spindles | n. | 12 | ||
| Independent horizontal spindles X direction | n. | 4 | ||
| Independent horizontal spindles Y direction | n. | 2 | ||
| Electrospindle motor power | kW | 5,5 | ||
