“All-in-one” technology

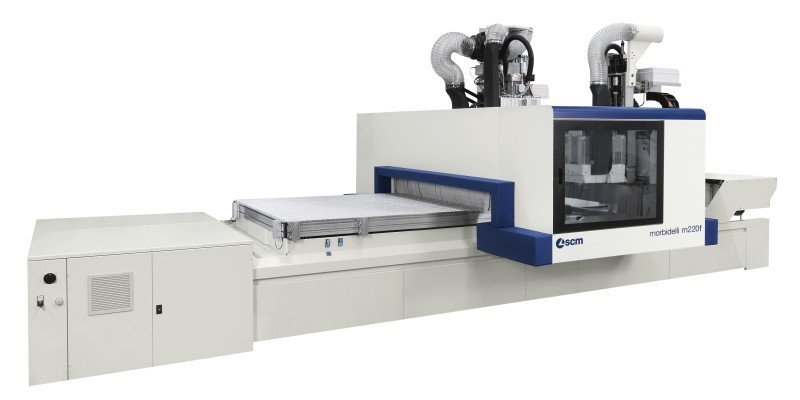

The machining centre with double drilling head reduces drilling cycles by 70%, compared to other machining centres on the market.
Just few clicks to design and manufacture pieces of any shape, the machine is run by Maestro cnc software which has specific modules for every production cycle.
“All-in-one” technology
The machining centre with double drilling head reduces drilling cycles by 70%, compared to other machining centres on the market.
Just few clicks to design and manufacture pieces of any shape, the machine is run by Maestro cnc software which has specific modules for every production cycle.
70% FASTER ON DRILLING CYCLES : ALL TOP QUALITY
Double drilling heads with independent Y-axis studied for simultaneous machining on an single panel or on 2 different panels.
FREEDOM AT 360°:
ALL FREEDOM
Optimizing the space within your factory thanks to the Pro-Space solution.
Maximum ergonomic load, the absence of perimetral protections allows the access to the work table from all sides of the machine.
ENDLESS MACHINING TYPES: ALL FLEXIBLE
The machine can cope with all types of materials: from wood to plastic, from panel to furniture and kitchen, the configured solution for all your needs and your investment plan.
The aluminium multi-function work table is designed to maintain a perfect planarity over time; it is ideal also for nesting machining.
WORK SIMPLE. WORK DIGITAL: MAESTRO CONNECT
morbidelli m220 is integrated with Maestro connect, the highly innovative “IoT” (Internet of Things) tools platform, enabling to collect, monitor and analyze the data of the machine, improving the services available to the customer. The software Maestro cnc offers the easiest programming system to program in a fast and intuitive way.
| Working areas | ||||
| X-Y axes dimensions | mm | 3110×1620 3710×1620 5510×1620 |
||
| Axes | ||||
| Vectorial speed | m/min | 56 (Pro-Space) 78 (Pro-Speed) |
||
| Z axis panel passage | mm | 180 | ||
| Routing unit | ||||
| Motor power (max.) | kW (hp) | 15 (20,5) | ||
| Rotation speed | rpm | 24000 | ||
| Available tools on tool changer (max.) | places | 60 | ||
| Drilling unit | ||||
| Independent vertical spindles (max.) | n. | 34 | ||
| Independent horizontal spindles (max.) | n. | 22 | ||
| Rotation speed (max.) | rpm | 8000 | ||
| Integrated blades in X | n. | 2 | ||
| 0-90° blade unit | ||||
| Motor power (max.) | kW (hp) | 2,2 (3) | ||
| Rotation speed (max.) | rpm | 6000 | ||
| Auxiliary routing unit | ||||
| Motor power (max.) | kW (hp) | 4,5 (6) | ||
| Rotation speed (max.) | rpm | 18000 | ||
