Automatic edge bander
Automatic edge bander with glue pot and pre-milling unit to edge band, with great flexibility, with melamine edges, PVC and ABS up to 3 mm and wooden strips up to 5 mm.

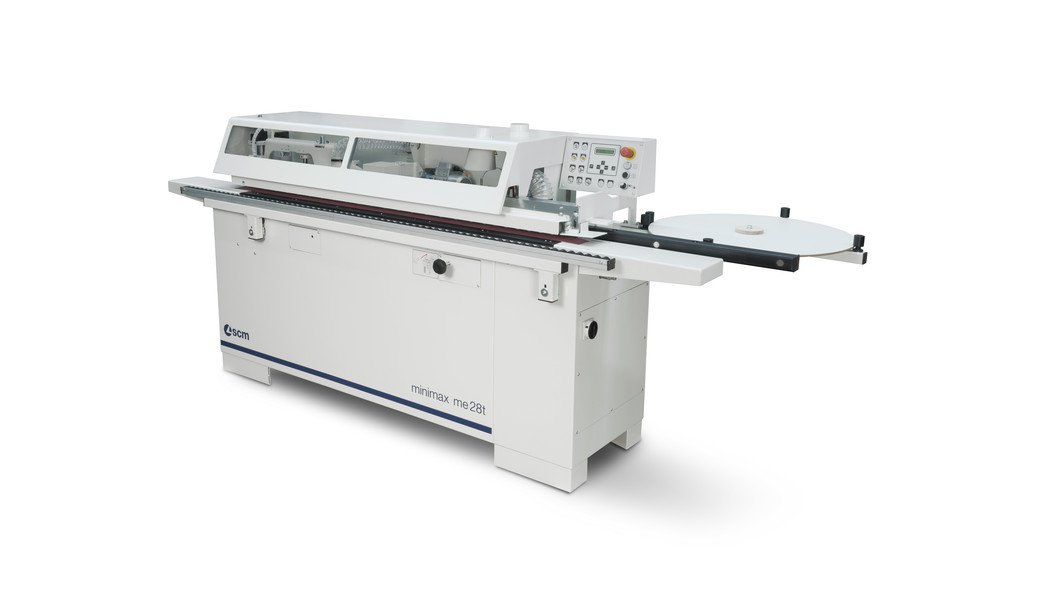

Minimax ME 28T
Automatic edge bander
Automatic edge bander with glue pot and pre-milling unit to edge band, with great flexibility, with melamine edges, PVC and ABS up to 3 mm and wooden strips up to 5 mm.
In Stock
Advantages
Pre-milling unit.
Panel edge surface without any imperfections before the gluing operation through the removal operation that corrects any panel imperfections caused by the saw cutting process and panel storage. The independent exhaust system ensures the panel cleaning removing dust and chips from the panel. No. 4 different thickness removals: 0,5 / 1 / 1,5 / 2 mm.
Designed for a perfect finishThe very best finishing of the panel edge is also guaranteed by the panel conveying track (exclusive solution), which prevents the panel having the feed affected by the typical pulses generatedby the pinion of a traditional feed track and ensures a smooth and linear panel movement.
Always precise when cuttingAbsolute precision offered by the unit, with a cutter and an independent asynchronous.
Simple and intuitive
Error-free machining is ensured by the control panel positioned on the front of the machine, that allows an easy selection of all the main functions, among them, the operating units switching on and off. The PLC guides the operator during maintenance, cleaning, diagnostic operations, etc.
Technical data
| minimax me 28t | ||
| Work table dimensions | mm | 2800 x 570 |
| Min. ÷ max. thickness of rolled edges | mm | 0,4 ÷ 3 |
| Max. thickness of edges in strips | mm | 5 |
| Min. ÷ max. panel height | mm | 12 ÷ 50 |
| Min. panel length/width | mm | 190/110 |
| Feed speed | m/min | 7 |
