Automatic edge bander
Automatic edge bander with glue pot to edge band, with great flexibility, with melaminic edges, PVC and ABS up to 2 mm and wooden strips up to 5 mm. Machine for professional craftsmen and joineries.

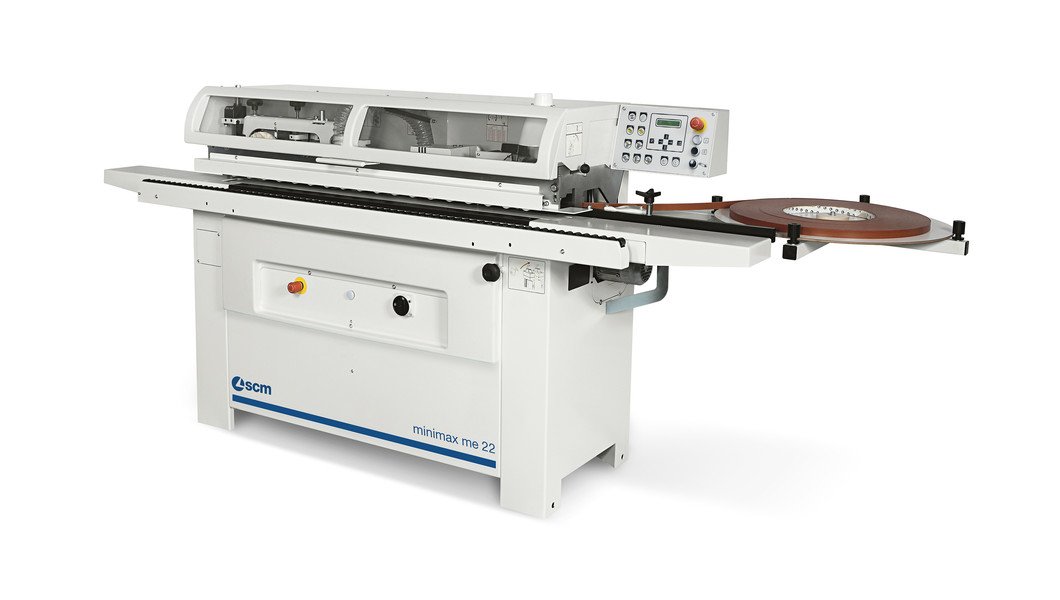

Minimax ME 22
Automatic edge bander
Automatic edge bander with glue pot to edge band, with great flexibility, with melaminic edges, PVC and ABS up to 2 mm and wooden strips up to 5 mm. Machine for professional craftsmen and joineries.
In Stock
Advantages
Designed for a perfect finish
The very best finishing of the panel edge is also guaranteed by the panel conveying track (exclusive solution), which prevents the panel having the feed affected by the typical pulses generatedby the pinion of a traditional feed track and ensures a smooth and linear panel movement.
Simple and intuitive
Error-free machining is ensured by the control panel positioned on the front of the machine, that allows an easy selection of all the main functions, among them, the operating units switching on and off. The PLC guides the operator during maintenance, cleaning, diagnostic operations, etc.
Error-free machining is ensured by the control panel positioned on the front of the machine, that allows an easy selection of all the main functions, among them, the operating units switching on and off. The PLC guides the operator during maintenance, cleaning, diagnostic operations, etc.
Ideal edge application
The glue is heated rapidly and evenly by the resistances. The automatic lowering of the glue temperature after a temporary halt in production when using the machine avoids burning of the glue. A new innovative system of self-lubrication of the glue pot, allows a more extensive use of the edge banding machine without the necessity of lubrication. Two rollers press the edge banding evenly and efficiently on to the panel edge. The glue spreading roller with electrical resistance inside provides a uniform glue spread and always at the maximum working temperature even on panels at the maximum working height.
The glue is heated rapidly and evenly by the resistances. The automatic lowering of the glue temperature after a temporary halt in production when using the machine avoids burning of the glue. A new innovative system of self-lubrication of the glue pot, allows a more extensive use of the edge banding machine without the necessity of lubrication. Two rollers press the edge banding evenly and efficiently on to the panel edge. The glue spreading roller with electrical resistance inside provides a uniform glue spread and always at the maximum working temperature even on panels at the maximum working height.
Quality finishing and versatility
The unit functions with slide copying pads to align perfectly to the work piece. These cutters are designed for straight or radius trimming of any type of edge, whether it is thick or thin, made of PVC, ABS, melamine, laminate or wood. The edge thickness is easily set by means of two numerical readouts.
Technical data
| minimax me 22 | ||
| Work table dimensions | mm | 2600 x 530 |
| Min. ÷ max. thickness of rolled edges | mm | 0,4 ÷ 2 |
| Max. thickness of edges in strips | mm | 5 |
| Min. ÷ max. panel height | mm | 12 ÷ 50 |
| Min. panel length/width | mm | 190/65 |
| Feed speed | m/min | 7 |
