The advanced solution with complete standard equipment that guarantees the best price-performance ratio.
Speed, precision, flexibility and productivity mark out gabbiani gt 2. It has been designed to assure high performance in a developed industrial context of just in time productions. With its range of options it can be used to cut plastic, acrylic and synthetic panels.

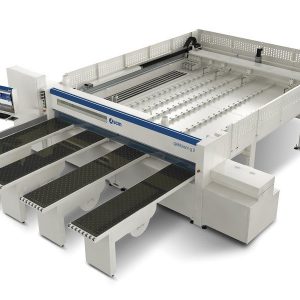

Gabbiani gt2
The advanced solution with complete standard equipment that guarantees the best price-performance ratio.
Speed, precision, flexibility and productivity mark out gabbiani gt 2. It has been designed to assure high performance in a developed industrial context of just in time productions. With its range of options it can be used to cut plastic, acrylic and synthetic panels.
In Stock
Advantages
HI-TRONIC Vertical stroke device: high technology on the saw carriage.
Very high quality finishingcutting standards together with high speed and precision with the total electronic control of the blades.
FLEXCUT 1/D and 1/S: more cuts in less time.High efficiency due to the use of 2 pushers with a completely independent stroke.
Drastic reduction in machining cycle times due to the simultaneous processing of several bars with different cuts.
In version 1/S, the unit is fitted with a single gripper, giving two independent cutting axes at an extremely low price.
In version 1/D, extreme flexibility is achieved as the mobile unit is fitted with two grippers, the second one can be excluded, therefore guaranteeing a wide variability in the width of the strips that can be gripped.
SAW SET: tool changing has never been so easy.In few seconds the “SAW-SET” device carries out a fast and precise tools adjustment due to the electronic setting, allowing an intuitive use of the machine and a productivity increase.
Loading platform: when sturdiness and precision make the difference.The lifting system, running on 4 large trapezoidal screws, as well as to maximize the load capacity in any material and format, always ensures parallel lifting of the stacks of panels avoiding downtime and achieving maximum productivity.
Technical data
| gabbiani gt 2 115 | gabbiani gt 2 130 | ||
| Cutting lenght | mm | 3200/3800/4500 | |
| Blade projection | mm | 115 | 128 |
| Max. height of panel stack on lifting table | mm | 600 | |
| Main blade motor power | kW (Hp) | 7,5 (11 – 15 – 18) | – |
| Max. motor power 100 Hz with Inverter (option) | kW (Hp) | – | 15 (18) |
| Saw carriage variable speed (option) | m/min | 0 – 150 (0 – 170) | |
| Pusher variable speed | m/min | 80 | |
| Kit for plastic materials cutting | Available | ||
| HI-TRONIC Vertical stroke device | Available | ||
| FLEXCUT devices | 1/S | 1/S – 1/D | |
| Number of clamps (3 of which with frontal side aligner) | std | 6 | |
