Its high level of versatility makes dmc sd 70 perfect for different types of machining. In the furniture sector (with veneered and painted panels) it excels in the provision of optimum level finishing thanks to the 2.620 mm sanding belt length and the electronic sectional pad.

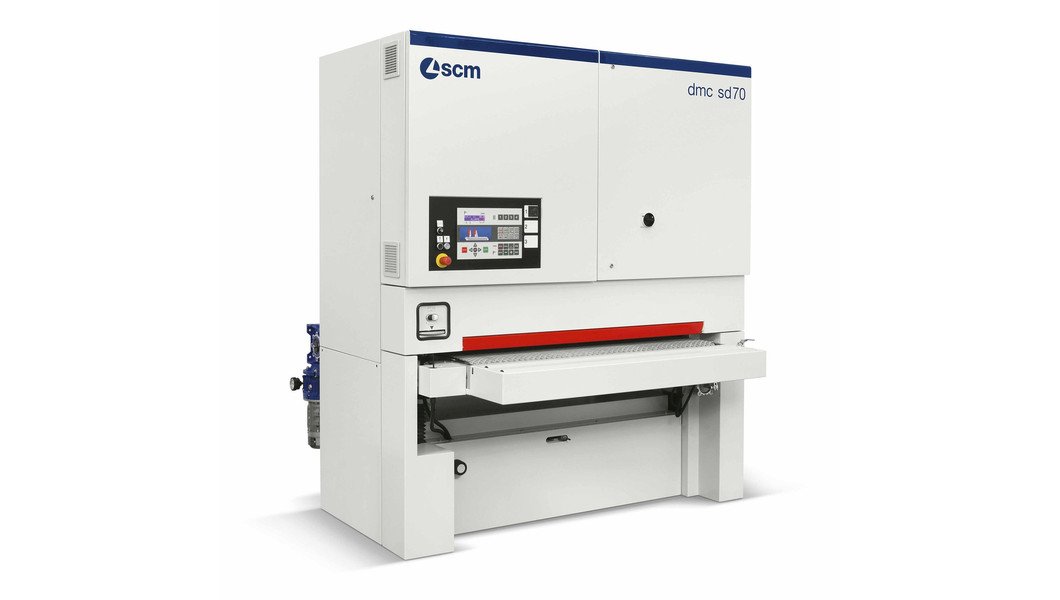

DMC SD 70
Its high level of versatility makes dmc sd 70 perfect for different types of machining. In the furniture sector (with veneered and painted panels) it excels in the provision of optimum level finishing thanks to the 2.620 mm sanding belt length and the electronic sectional pad.
In Stock
Advantages
Long belts: 2.620 mm length for greater finishing and productivity
Better cooling of the abrasive grit due to the greater development of the belts that reduces the adherence of processed dust.
An extended belt length lasts longer, requires fewer replacements and consequently less downtime.
Automatic feed belt tensioning and centering: for an easy operation An electro-pneumatic system keeps the feed belt on track, perfectly centred and tensioned at all times. The system is automatic and no operator intervention is required.
Belt oscillation controlled by an electronic photocellThis precision control system maximum uniformity in belt oscillation: this reduces the risk of belt breakage and improves finishing quality.
Technical data
| Working width | mm | 1.350 |
| Min. – max. working thickness (with mobile table) | mm | 4 – 170 |
| Min. – max. working thickness (with fixed table) | mm | 4 – 200 |
| Sanding belts width | mm | 1.370 |
| Sanding belts length | mm | 2.620 |
| Standard main motor power | kW (Hp) | 11 (15) |
| Motor power 1st group | kW (Hp) | 11 (15) |
| Motor power 2nd group | kW (Hp) | 11 (15) |
| Feed belt speed | m/min | 4,5/9 |
