CNC milling, tenoning, mortising machine for kitchen furniture doors and furniture fronts. The balestrini pico md2 machine is specifically designed to cut a special 45° or 90° joint ideal for furniture door frames, table tops, front frames of chest of drawers, etc. It is equipped with two working units moving on two interpolated axes. One units cuts ends and tenons, while the other unit makes holes or slots.

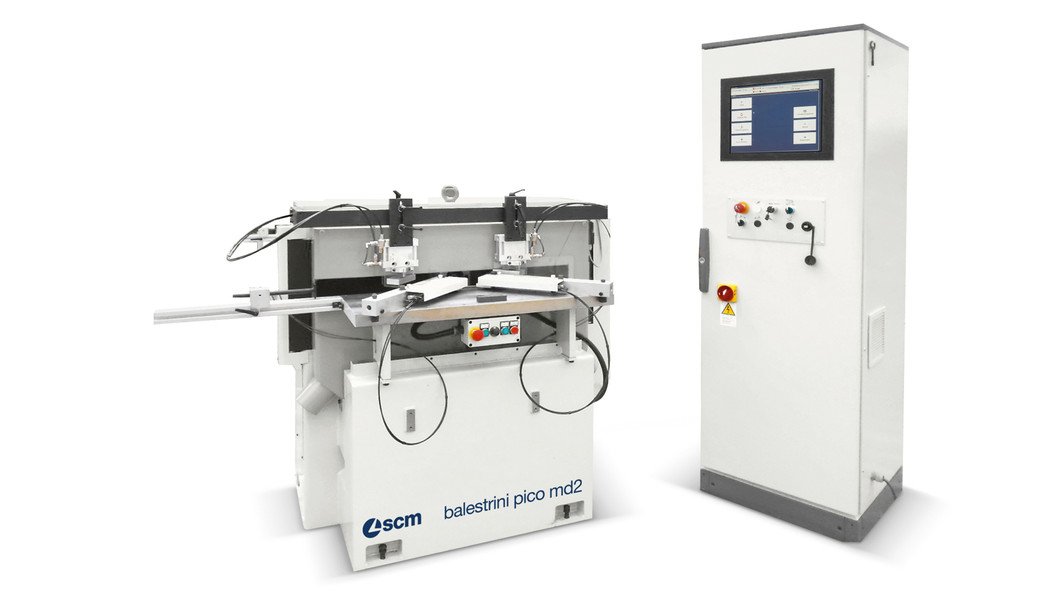

Balestrini Pico MD2 CNC
CNC milling, tenoning, mortising machine for kitchen furniture doors and furniture fronts. The balestrini pico md2 machine is specifically designed to cut a special 45° or 90° joint ideal for furniture door frames, table tops, front frames of chest of drawers, etc. It is equipped with two working units moving on two interpolated axes. One units cuts ends and tenons, while the other unit makes holes or slots.
In Stock
Technical data
| Workable piece dimensions | |
| Width x thickness with cut at 45° | 110×30 mm |
| Width x thickness with cut at 0° | 140×40 mm |
| Min. workpiece length | 100 mm |
| Tenons dimensions | |
| Max. tenon length | 140 mm |
| Tenon thickness max | 30 mm |
| Tenon depth | 5÷30 mm |
| Mortise dimensions | |
| Mortise length | 0÷140 mm |
| Mortise thickness | 0÷16 mm (double with interpolation) |
| Mortise depth | 0÷30 mm |
| Maximum Productivity | 200 pieces/h (50 kitchen frames) |
