CNC Double bench round end tenoning machine balestrini pico cn is the most advanced solution currently available for straight or round end tenons. Ideal for single individual pieces and small batches. With a CNC work cycle, it can produce large-size tenons.

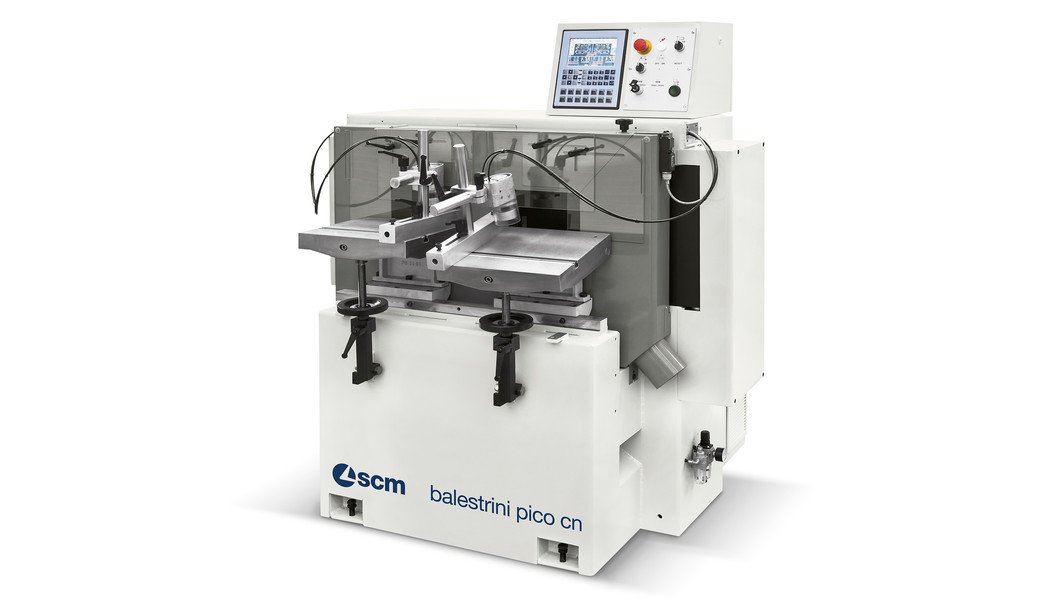

Balestrini Pico CNC
CNC Double bench round end tenoning machine balestrini pico cn is the most advanced solution currently available for straight or round end tenons. Ideal for single individual pieces and small batches. With a CNC work cycle, it can produce large-size tenons.
In Stock
Technical data
| Workable piece dimensions | |
| Width x thickness with straight cut max. | 170×70 mm |
| Width x thickness with straight cut min. | 10×10 mm 15×8 mm |
| Min. workpiece length | 100 mm |
| Tenons dimensions | |
| Tenon max. length hor. | 160 mm |
| Max. tenon length on request | 200 mm |
| Tenon max. length vert. | 100 mm |
| Tenon thickness hor. max. | 40 mm |
| Tenon depth (larger on request) | 5÷50 mm |
| Tenon tilt | 0°÷90° |
| Maximum Productivity | 720 tenons/h |
