Automatic edge bander

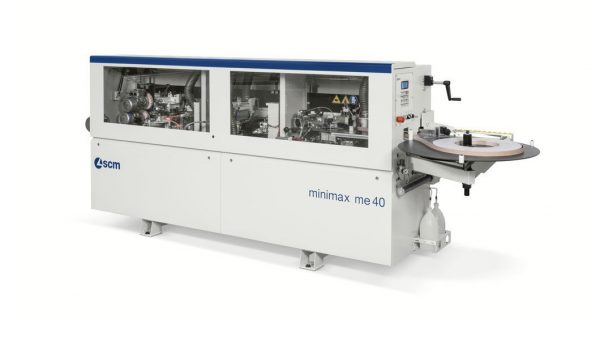

Minimax me 40, top-of-the range of the minimax edge banders with a wide choice of accessories (possibility to simultaneously install the following finishing units: edge scraper, glue scraper, brushes and scorer for grooves) with the best quality-price ratio. This edge bander increases productivity with a 9 m/min panel feed speed with track (the quickest of the minimax range). It is also characterized by its many advantages: working quality; possibility to work with polyurethane glue; possibility to carry out slots; ease of use and increased productivity.
Advantages
High productivity
9 m/min panel feed speed with track movement for an increased productivity. Monitoring of the panel position by encoder for a total work cycle control.
Simple and intuitive
Error-free machining is ensured by the control panel positioned on the front of the machine, that allows an easy selection of all the main functions, among them, the operating units switching on and off. The PLC guides the operator during maintenance, cleaning, diagnostic operations, etc.
Ideal edge application
The glue is heated rapidly and evenly by the resistances. The automatic lowering of the glue temperature after a temporary halt in production when using the machine avoids burning of the glue. A new innovative system of self-lubrication of the glue pot, allows a more extensive use of the edge banding machine without the necessity of lubrication. Two rollers press the edge banding evenly and efficiently on to the panel edge. The glue spreading roller with electrical resistance inside provides a uniform glue spread and always at the maximum working temperature even on panels at the maximum working height. The rapid unlocking of the glue pot and PU glue pot is available as optional device.
Brillant idea
The end-cutting unit with “Radius” allows you to make a radius on the corners of the edged panel without the need of the operator to have to finish by hand at a later stage: brillant idea to a finished product of high quality.
